產品描述
阿普奇邊緣AI平臺E7 Pro系列Q670平臺是一款專為邊緣計算研發的嵌入式工控機，具備強大的計算能力和豐富的功能特點。搭載了Intel? LGA1700 12/13th處理器，支持Core? i3/i5/i7/i9、Pentium?及Celeron?系列，能夠提供強大的數據處理和計算能力，使得E7 Pro系列Q670平臺在處理復雜的AI算法和大量數據時能夠保持高效率和準確性。搭配Intel? Q670芯片組確保了AI平臺的可靠性和高效性，使得E7 Pro系列Q670平臺能夠滿足各種邊緣計算應用的需求。具備豐富的擴展接口和插槽，配備了PCIe、mini PCIe和M.2等擴展插槽，支持各種擴展卡和模塊的連接。這種擴展能力使得E7 Pro系列Q670平臺能夠根據具體應用需求進行定制和配置，滿足各種邊緣計算應用的擴展需求。在散熱方面，E7 Pro系列Q670平臺采用了先進的無風扇被動式散熱設計，有效地降低了噪音并提高了散熱效率，確保了AI平臺在長時間運行時仍能保持穩定。
綜上所述，阿普奇邊緣AI平臺E7 Pro系列Q670平臺憑借強大的計算能力、穩定的系統性能、豐富的擴展智能安防、智慧交通、智能接口和插槽以及高效的散熱設計等特點，滿足了現代邊緣計算應用的需求。無論是在制造等領域，還是在其他需要高性能邊緣計算的場景中，E7 Pro系列Q670平臺嵌入式工控機都能發揮出色的性能，成為推動邊緣計算技術發展的強大引擎。
|
Model |
E7 Pro |
|
|
CPU |
CPU | Intel? 12th /13th Gen Core/Pentium/Celeron desktop processor |
| TDP | 65W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Max Capacity | 64GB,Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
|
Storage |
SATA | 3 * SATA3.0, Quick release hard disk bays (T≤7mm) ,?Support?RAID?0, 1, 5 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe Slot | Support PCIe module card(1*PCIe x 16+1*PCIe x4/1*PCIe x16+3*PCI/2*PCIe x8+2*PCI) PS:Expansion Card length limited 320mm,TDP limited 450W |
| aDoor | aDoor1 for expansion serial function( ex:COM /CAN)
aDoor2 for expansion APQ aDoor expansion module AR series |
|
| Mini PCIe | 1 * Mini PCI-E Slot (PCIe x1+USB,Wifi/3G/4G supported, with 1 * Nano SIM Card Slot) 1 * Mini PCI-E Slot (PCIe x1+USB,Wifi/3G/4G supported, with 1 * Nano SIM Card Slot) |
|
| M.2 | 1 * M.2 Key-E slot(PCIe+USB, Wifi+BT,2230) | |
|

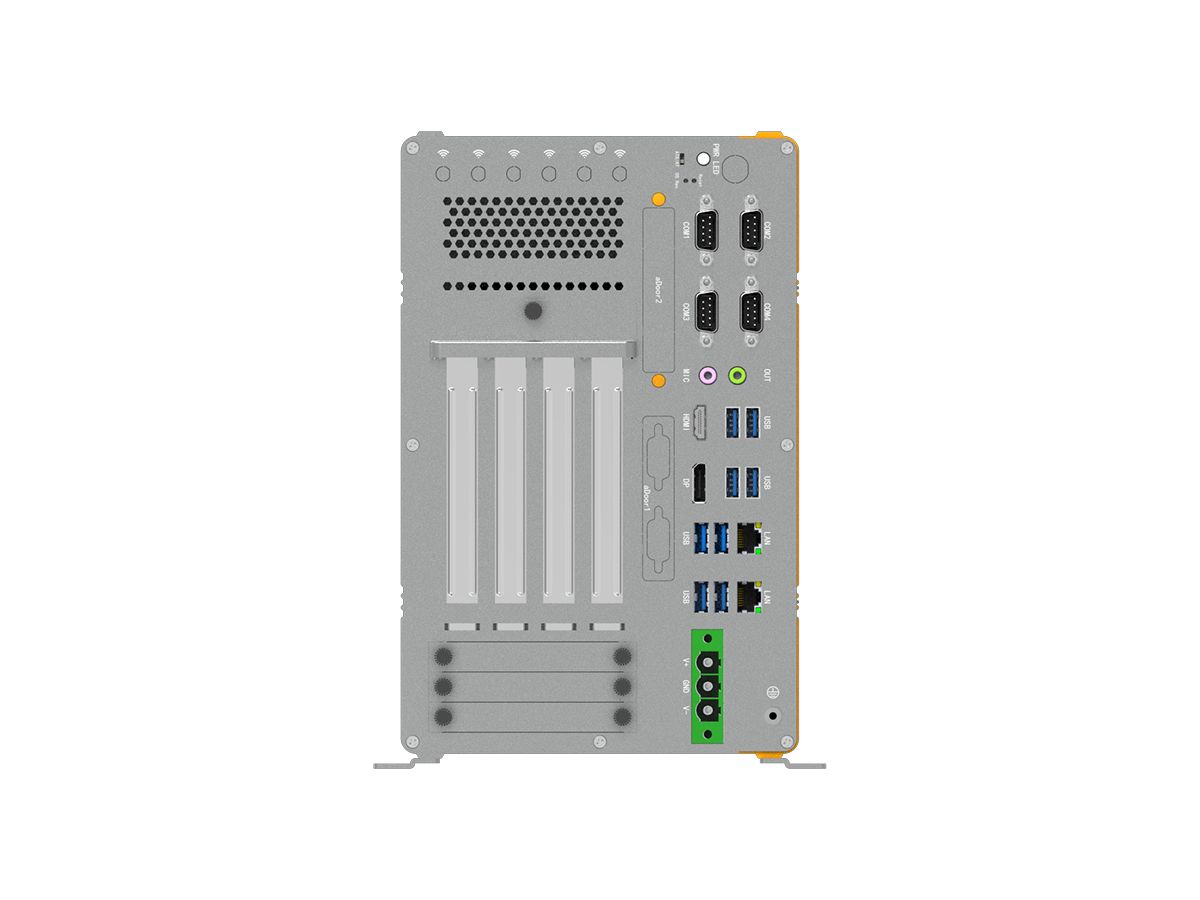

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen 2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) |
|
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160@30Hz 1 * DP1.4a: max resolution up to 4096*2160@60Hz |
|
| Audio | Realtek ALC269Q-VB6 5.1 Channel HDA Codec 1 * Line-Out + MIC 3.5mm Jack |
|
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes,BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes) |
|
| Button | 1 * Power Button/LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
|
|
Rear I/O |
Antenna | 6 * Antenna hole |
|
Internal I/O |
USB | 6 * USB2.0(wafer, Internal I/O) |
| LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200@60Hz | |
| Front Panel | 1 * FPanel (FPANEL, PWR+RST+LED,wafer,5 x 2pin,P=2.0) | |
| Audio | 1 * Audio (Header, 5x2pin, 2.54mm) 1 * Speaker (2W 8Ω, wafer, 4x1pin, PH2.0) |
|
| Serial | 2 * RS232 (COM5/6, wafer, 8x2pin, PHD2.0) | |
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer, 10x2pin, PHD2.0) | |
| LPC | 1 * LPC (wafer, 8x2Pin, PHD2.0) | |
| SATA | 3 * SATA3.0 7P Connector, up to 600MB/s | |
| SATA Power | 3 * SATA Power (wafer, 4x1Pin, PH2.0) | |
| SIM | 2 * Nano SIM | |
| FAN | 2 * SYS FAN (4x1Pin, KF2510-4A) | |
|
Power Supply |
Type | DC, AT/ATX |
| Power Input Voltage | 18~62VDC，P=600/800/1000W | |
| Connector | 1 * 3Pin Connector, P=10.16 | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminium, Box: SGCC |
| Dimensions | 363mm(L) * 270mm(W) * 169mm(H) | |
| Weight | Net:10.48 kg, Total:11.38 kg(Include packaging) | |
| Mounting | VESA, Wallmount,Desk mounting | |
|
Environment |

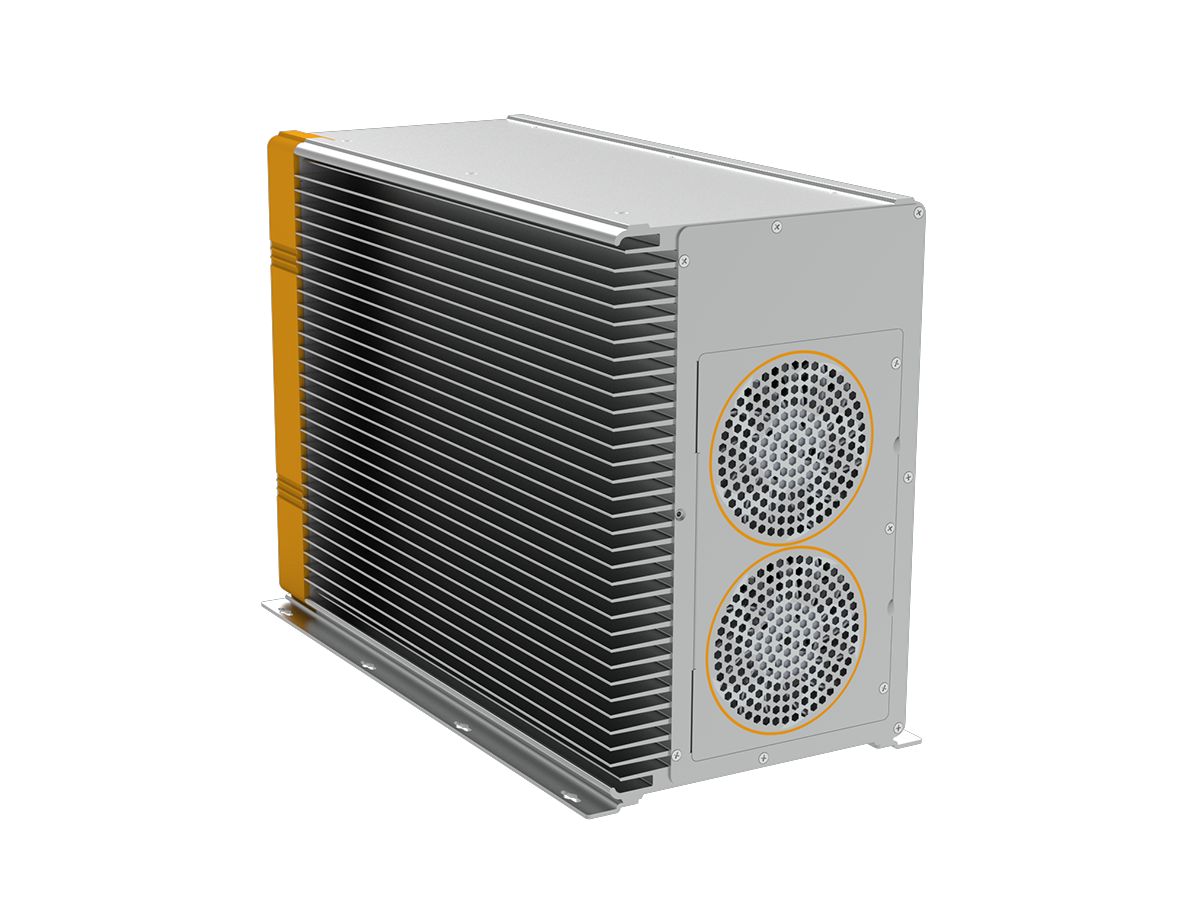

Heat Dissipation System | Fanless(CPU) 2*9cm PWM FAN(Internal) |
| Operating Temperature | -20~60℃?(SSD or M.2 Storage) | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
