產品描述

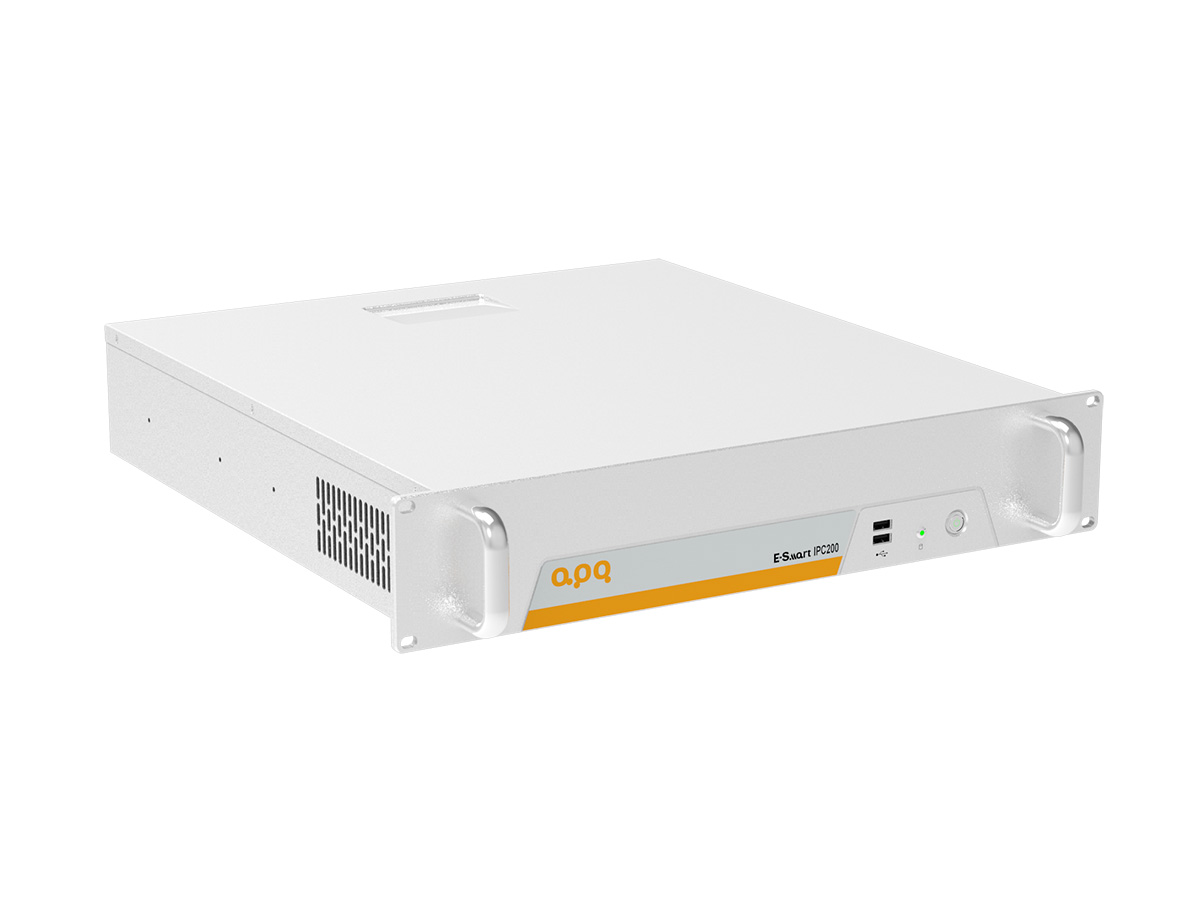

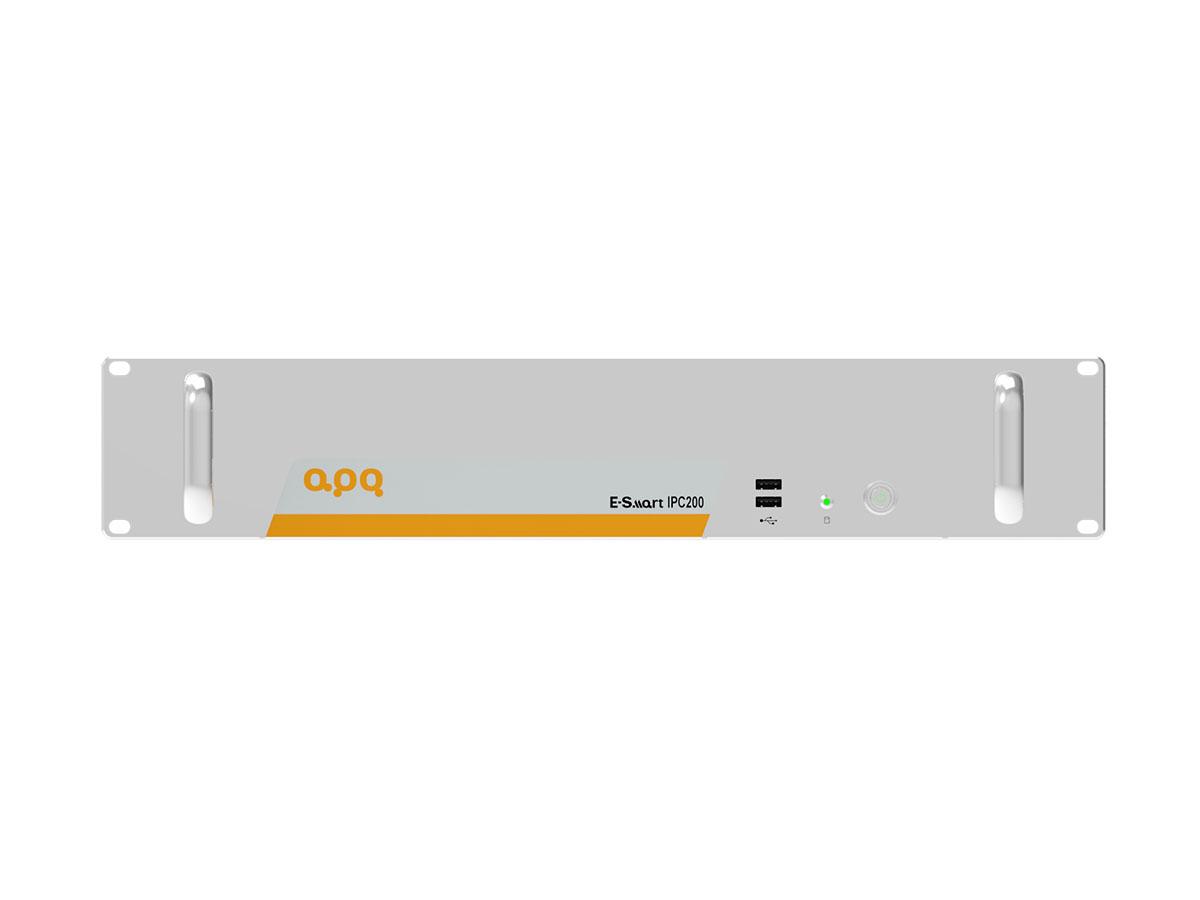

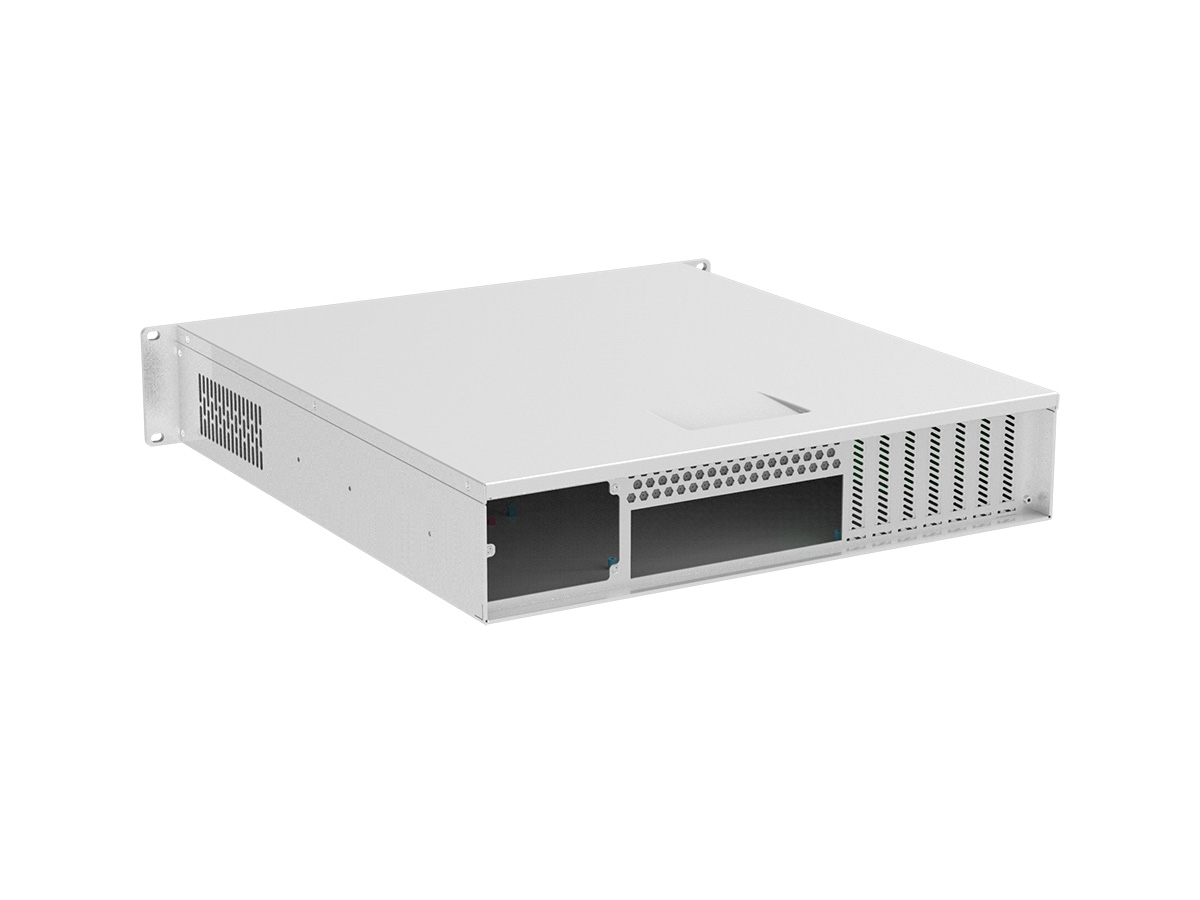

阿普奇2U上架式機箱IPC200，以其卓越的性能和緊湊的尺寸，成為工業級計算的新標桿。面板采用鋁合金模具成型，標準19英寸2U上架式設計，既堅固又美觀。可安裝標準ATX主板，支持標準2U電源，確保了強大的計算能力和穩定的電力供應。IPC200的擴展能力同樣出色，具備7個半高卡擴展槽位，通過靈活的擴展，IPC200能夠適應各種不同的工作負載和系統配置。IPC200最多可選4個3.5英寸抗震抗沖擊硬盤位，這種設計確保了存儲設備在各種惡劣環境下都能正常工作，為數據的安全與穩定提供了堅實屏障。為了方便系統維護，IPC200工控機箱的前面板設計了USB接口和開關機按鈕。同時，電源及存儲狀態顯示功能使得用戶可以直觀地了解系統的工作狀態，進一步簡化了維護過程。
阿普奇2U上架式機箱IPC200，憑借其堅固耐用、擴展性強、易于維護等特點，無疑是工業自動化和邊緣計算的理想選擇。
|
Model |
IPC200-H610 |
|
|
Processor System |
CPU | Support Intel??12~14th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1700 | |
| Chipset | H610 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i225/226-V/LM LAN Chip (10/100/1000/2500 Mbps, RJ45)1 * Intel i219-V/LM GBE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 3 * SATA3.0 7P Connector |
| M.2 | 1 * M.2 Key-M Slot (SATA 3.0, SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen?4, x16 signal) 1 * PCIe x4 slot (Gen?3, x4 signal) 1 * PCIe x4 slot (Gen?3, x2 signal,?Default, co-lay Mini PCIe) |
| PCI | 4 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen?3 (Opt. co-lay PCIe x4 slot) + USB 2.0, with 1 * SIM Card slot) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 4 * USB 5Gbps (Type-A, 5Gbps, 2 ports for a total of 3A) 2 * USB2.0 (Type-A, 2 ports for a total of 2A) |
|
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * HDMI: max resolution up to 3840*2160 @ 30Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

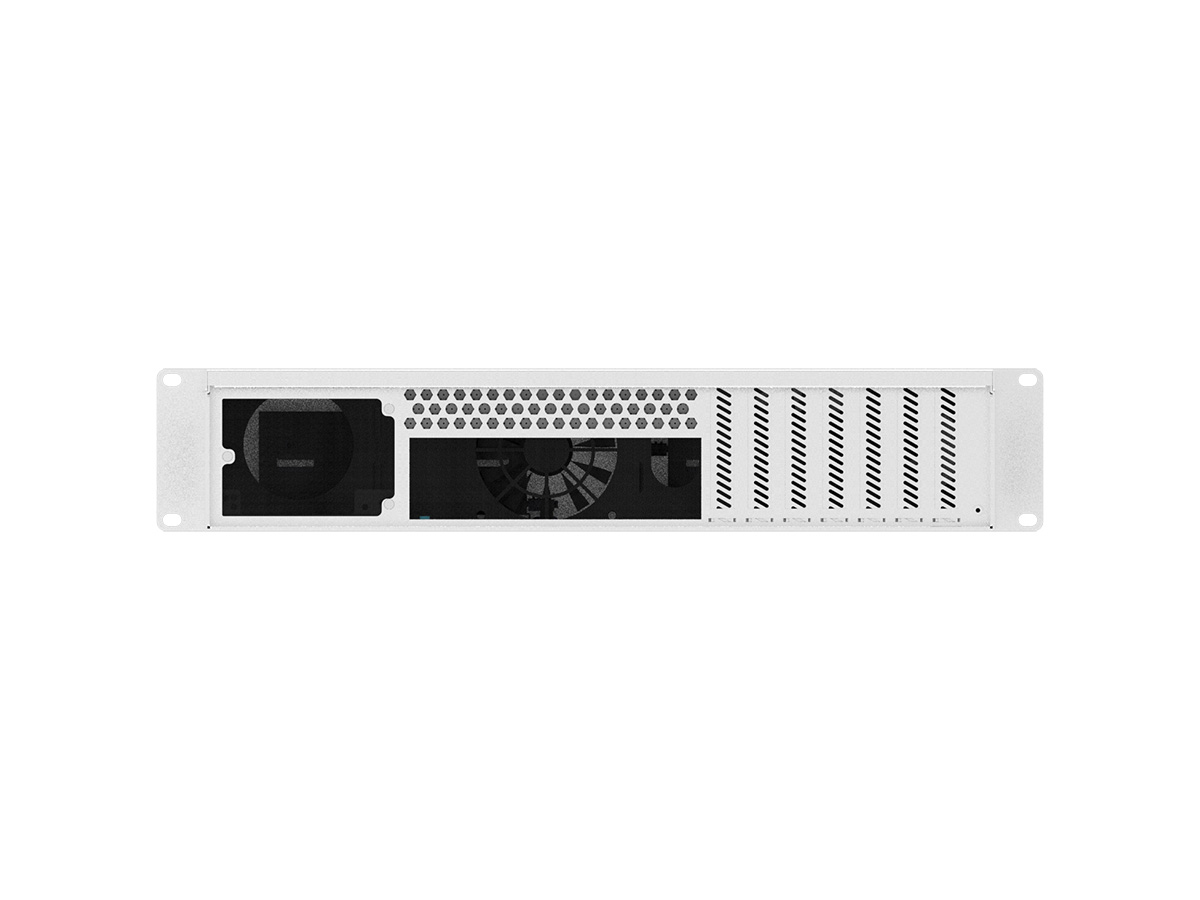

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED 1 * Hard drive status LED |
|
|
Internal I/O |
USB | 1 * USB 2.0 (Vertical Type-A) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer) 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
|
| Audio | 1 * Front Audio (Line-Out + MIC, Header) 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
|
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 3 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| FAN | 2 * SYS FAN (Header) 1 * CPU FAN (Header) |
|
| eSPI | 1?* eSPI (Header) | |
|
Power Supply |
Type | 2U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux Kernel 5.18 or later | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|

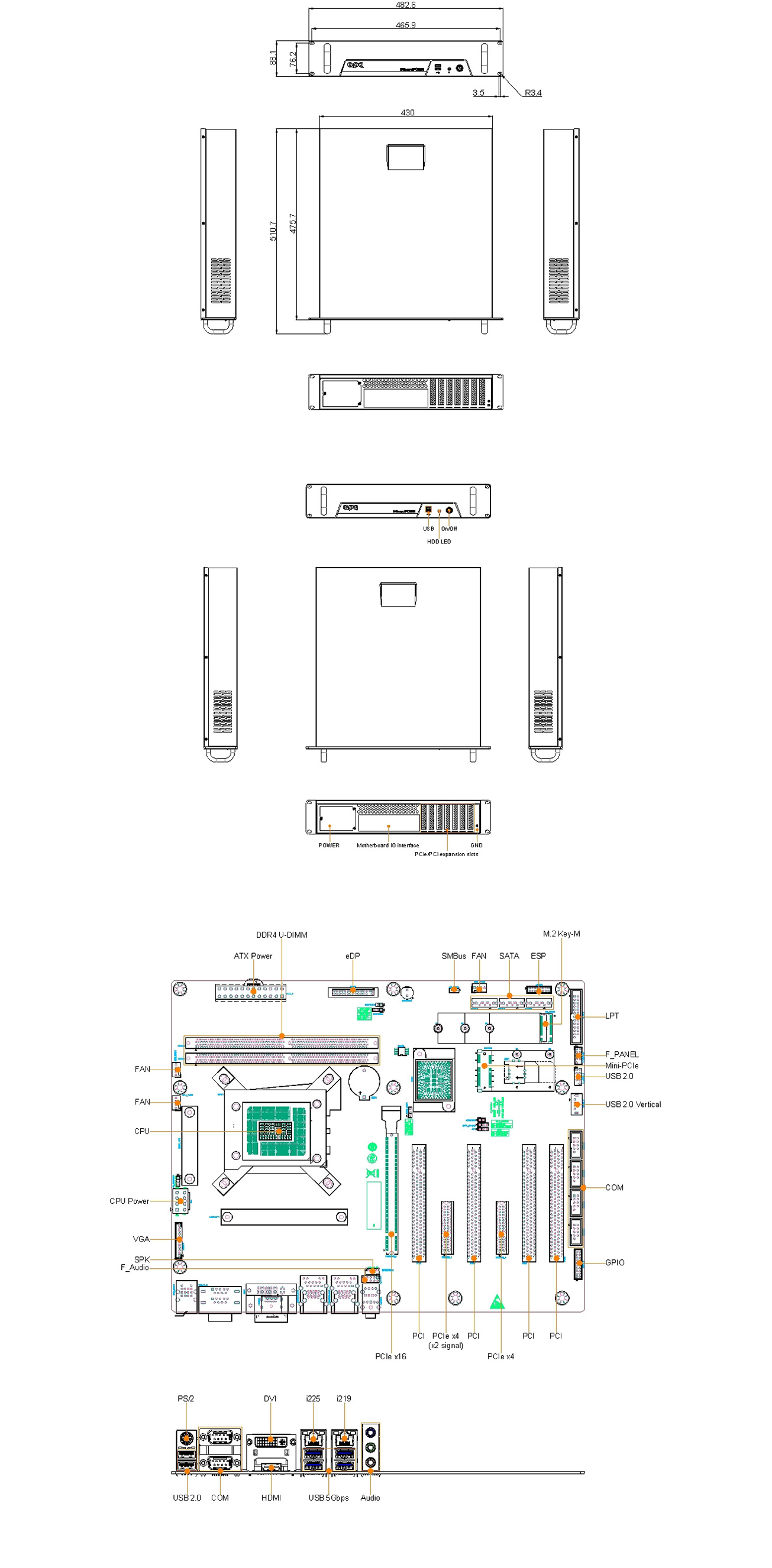

Mechanical |
Enclosure Material | SGCC+AL6061 |
| Dimensions | 482.6mm(L) * 475.7mm(W) * 88.1mm(H) | |
| Mounting | Rack-mounted/Desktop | |
|
Environment |
Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
